Description

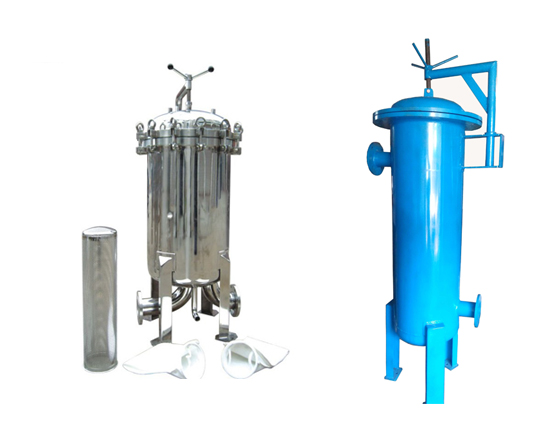

Bag filter housings are designed to meet and/or exceed nearly all application requirements. Features such as adjustable stainless leg assembly, positive bag seal, quick opening clamp or swing bolt closure, deferential gauge ports and a stainless steel basket make our bag housings the industry leader.
Designed for various flow rates with single and multiple bags arrangement. Normally, the filtration is from inside to out through the bag filter media. Contaminant removed from the liquid are retained inside the bag making change over and disposal simple.
If further project details provided to us, Cleanse Filtration team are glad to have your own customized bag filter housings. OEM Design drawing will be firstly sent according to your budget plan and projects parameters. Good ratio of quality and price will brought to our customer. Different In/Outlet connections, varied construction and surface finish solutions as per your request.
Technical Specification:
- MOC: SS304/SS316/SS316L/CS/Duplex Steel
- No. of Bags: Upto 16
- Bag Sizes: Ø4”X20”, Ø7”X16”, Ø7”X32”
- Filtration Rating: 5,10,20,25,50,100 & More
- Pressure Upto 15 Bar and More on Request
- Flow: Up to 500 Mᶾ/HR & More
- Line Size: 1” to 24”
- Connection: Flanged/Clamped/Threaded/Union
- Gasket: Silicon,Neoprene,PTFE,Viton
- Surface Finish: Matt Finish/Mirror Finish/Paint
- Optional Finish: Electro Polished/PP/HDPE Lining/FRP Lining
- Design: Standard and Customized as per requirement
